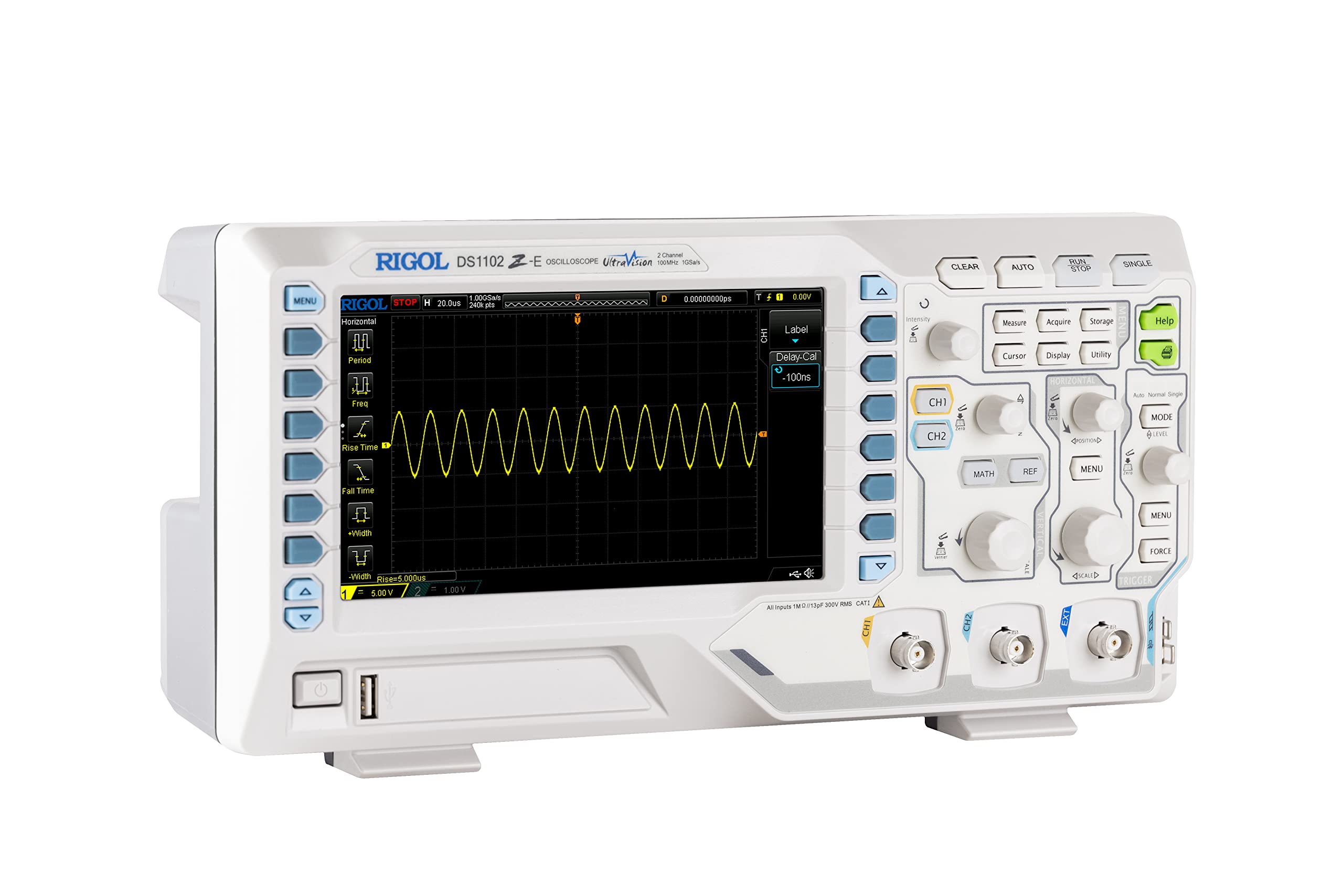

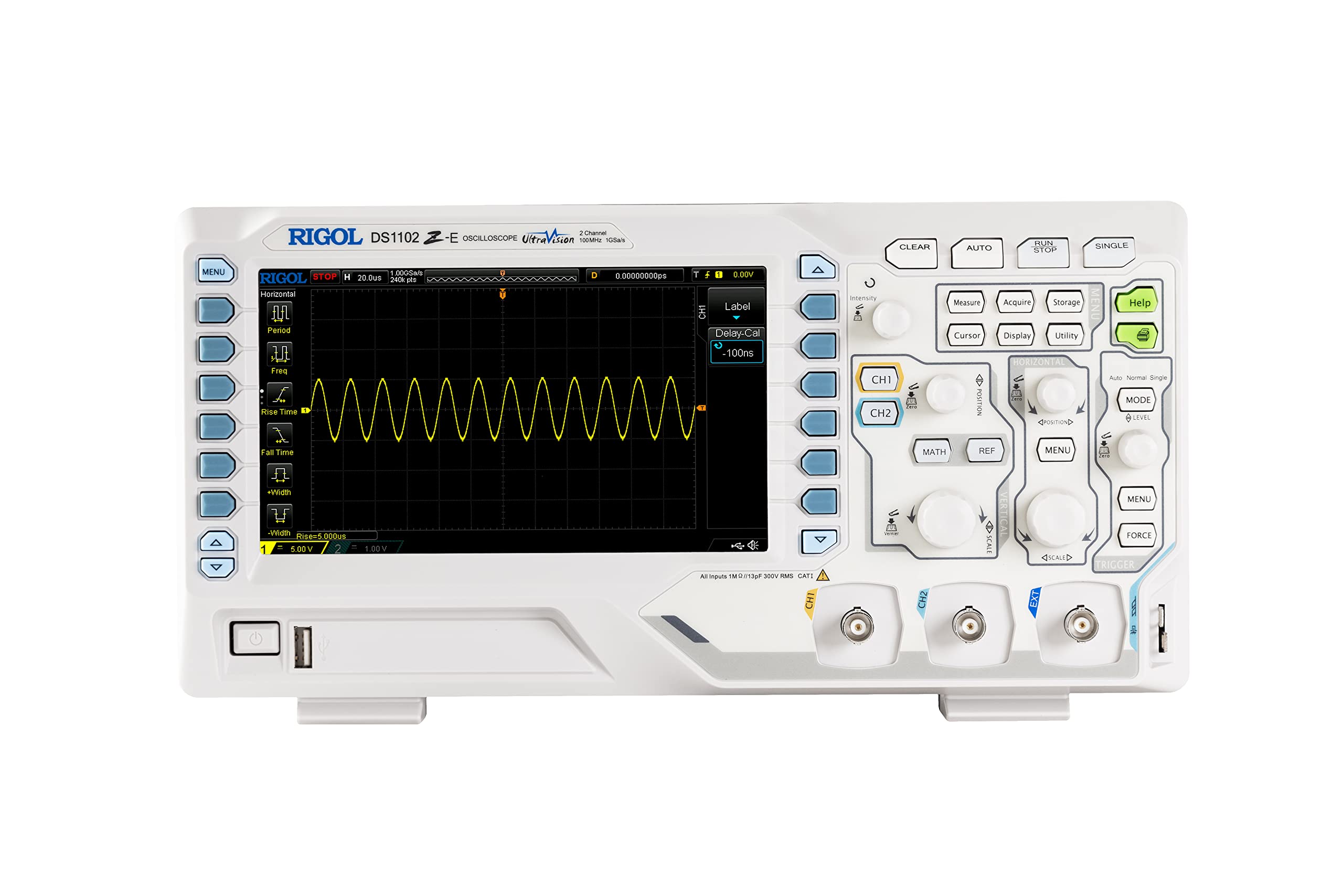

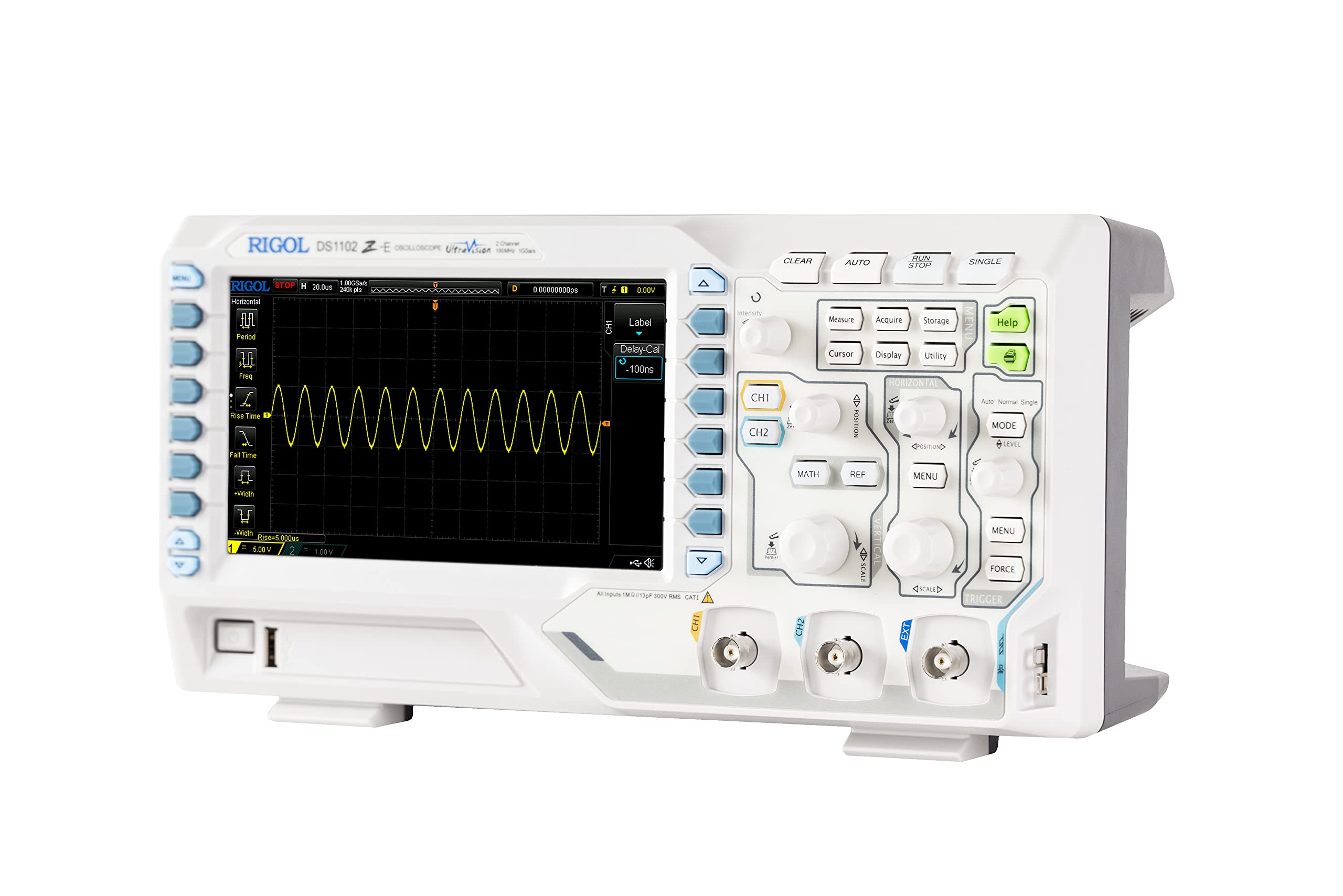

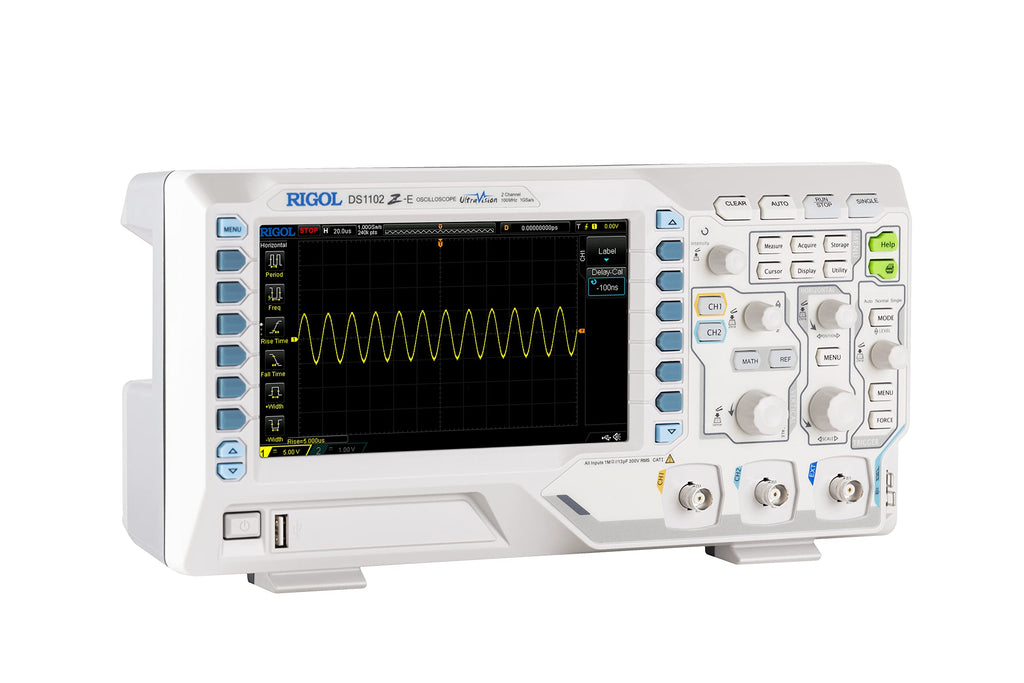

RIGOL Digital Oscilloscope DS1102Z-E 100 MHz 2-Ch 1 GSa/s 24 Mpts 30,000 wfms/s UltraVision 7" 800x480 Intensity Display, 60,000-Frame Record, Serial Decode UART I2C SPI for Debug & Education

Brand: Rigol

Features:

• 【Core Specs】100 MHz digital oscilloscope with 2 analog channels and external trigger input, up to 1 GSa/s real-time sample rate and standard deep memory up to 24 Mpts (12 Mpts dual-channel) for longer captures at higher sample rate.
• 【Waveform Capture & Display】Up to 30,000 wfms/s waveform capture rate helps reveal intermittent glitches; 7" WVGA (800×480) TFT with intensity graded color display provides a digital-phosphor style view for jitter and noise visibility.
• 【Record/Playback & Decode】Hardware real-time waveform recording and playback up to 60,000 frames supports event review. Serial bus trigger and decoding functions support RS232/UART, I2C and SPI for embedded troubleshooting.

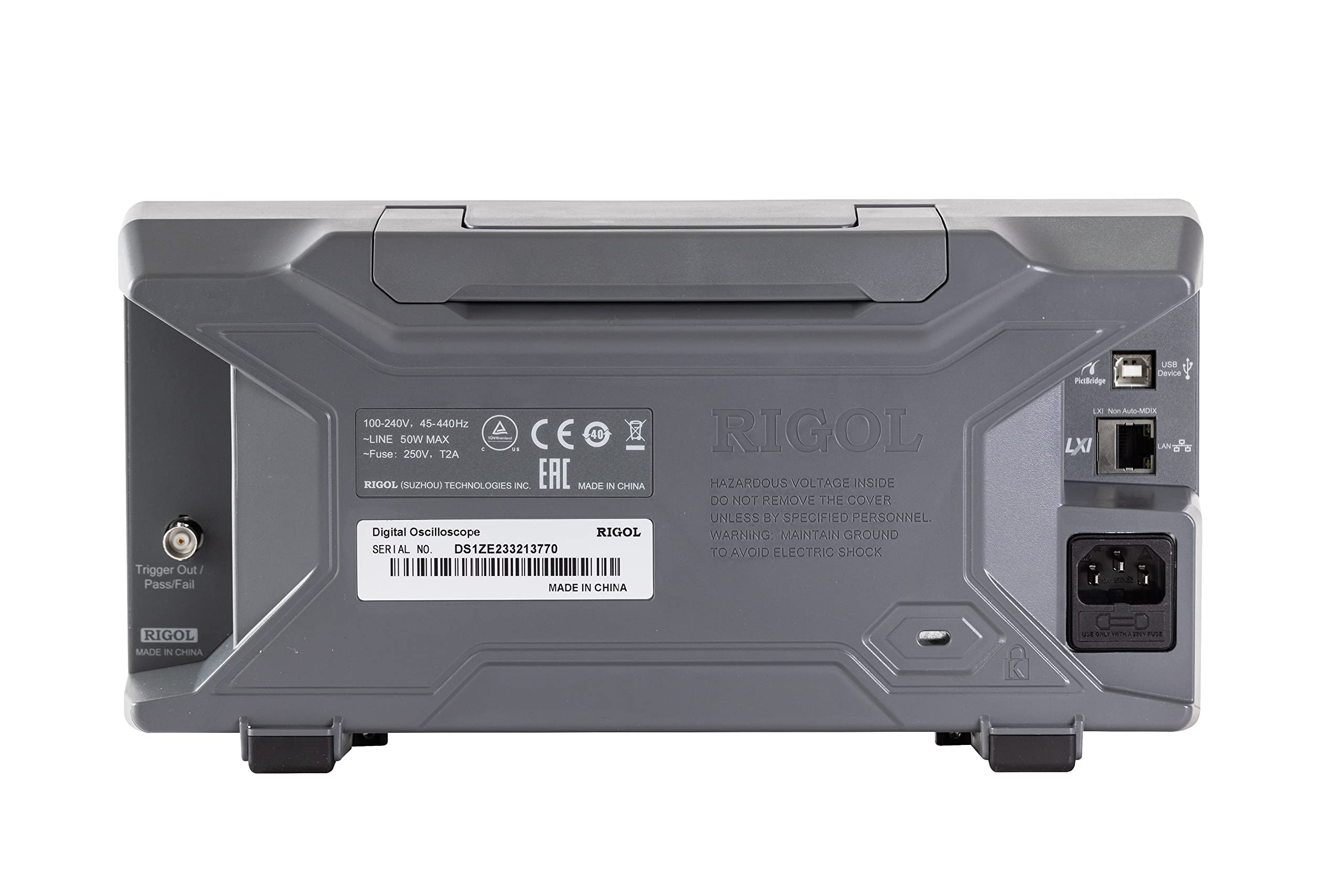

• 【Connectivity & Remote】Standard interfaces include USB Host, USB Device and LAN (LXI), plus AUX output (TrigOut/PassFail) for bench integration and documentation workflows.
• 【Applications】Digital oscilloscope for electronics debugging, education labs, power and embedded bring-up; deep memory and capture rate help you keep both the big picture and fine details in long time captures.

Package Dimensions: 17.3 x 11.1 x 10.1 inches

Part Number: DS1102Z-E

model number: DS1102Z-E
