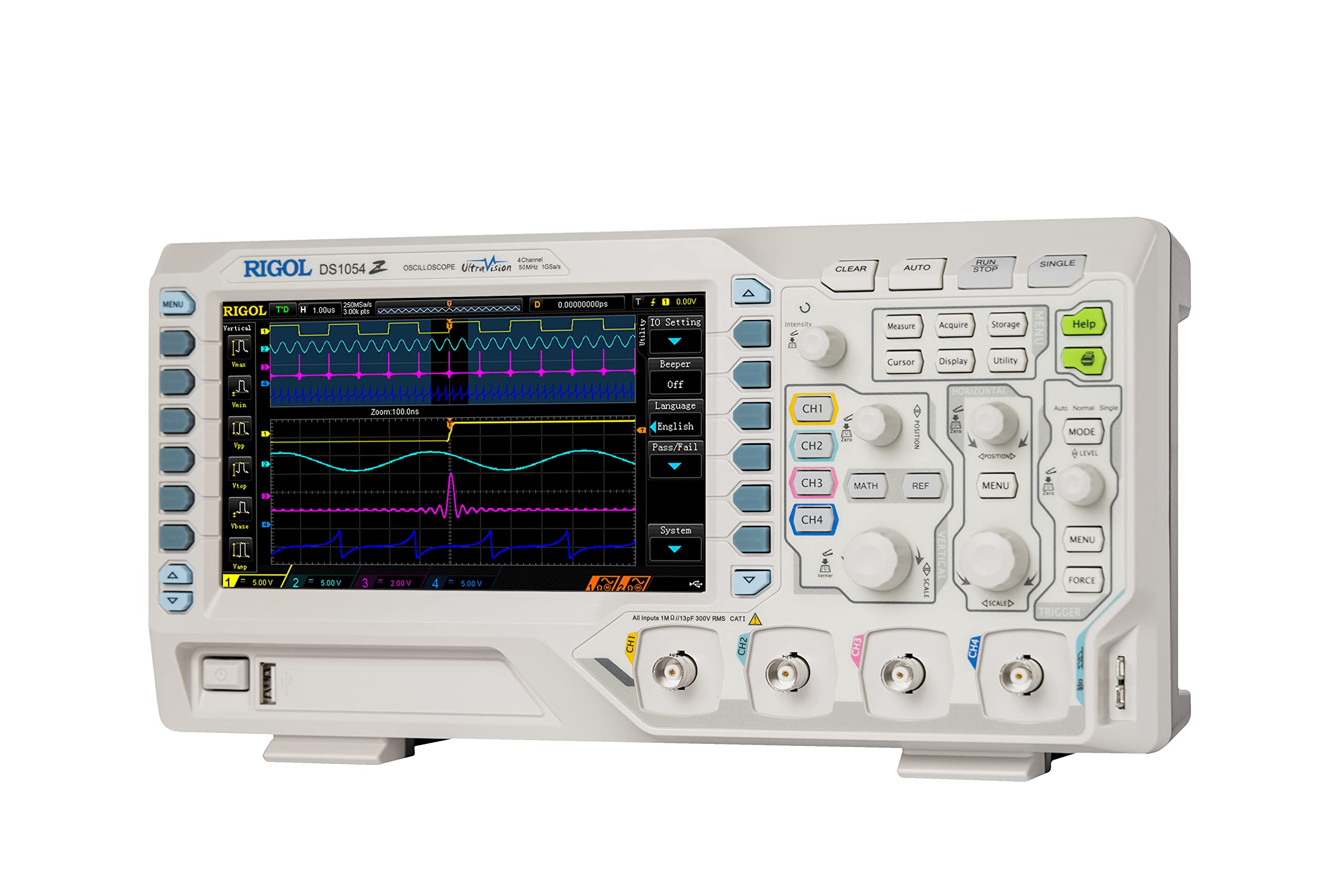

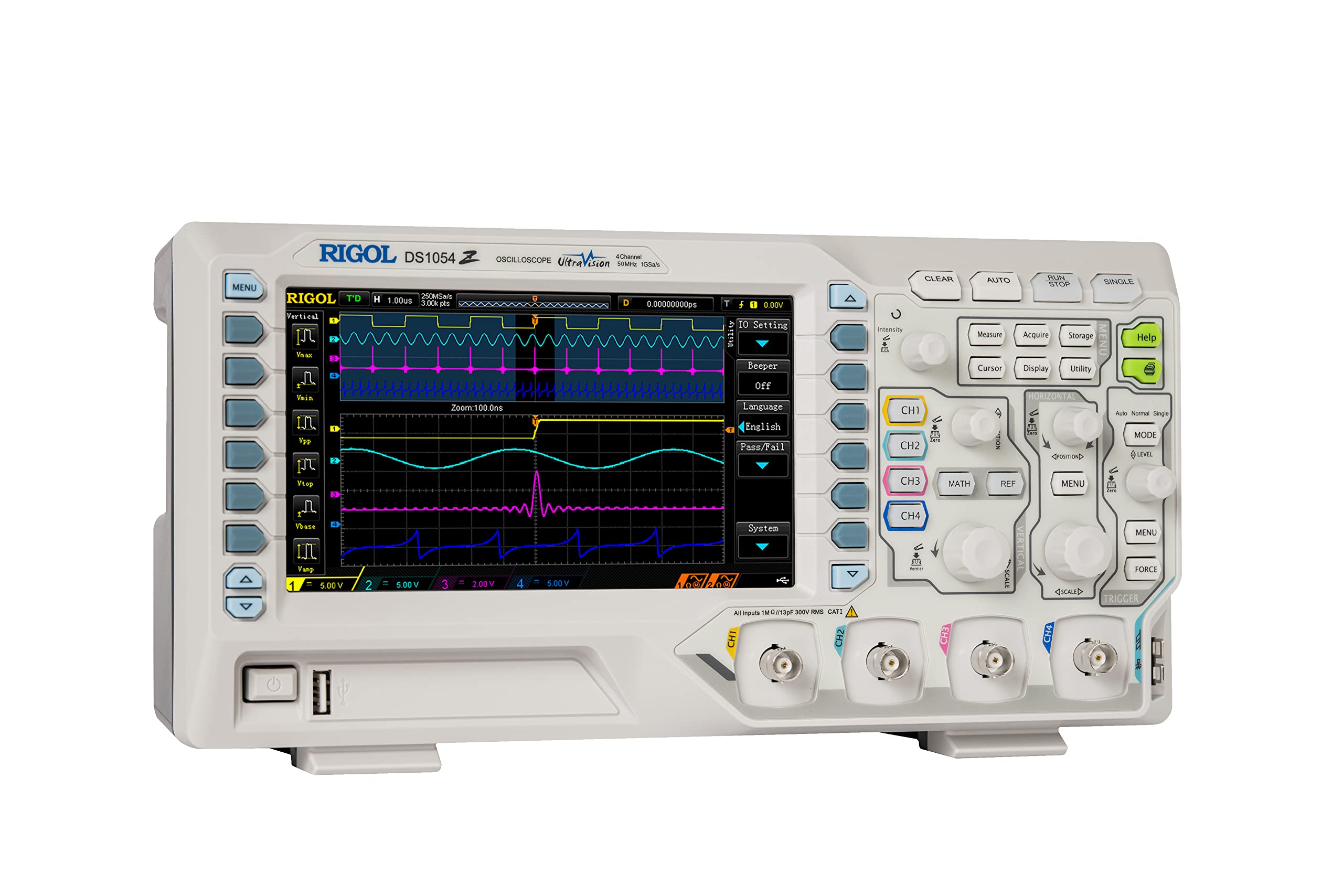

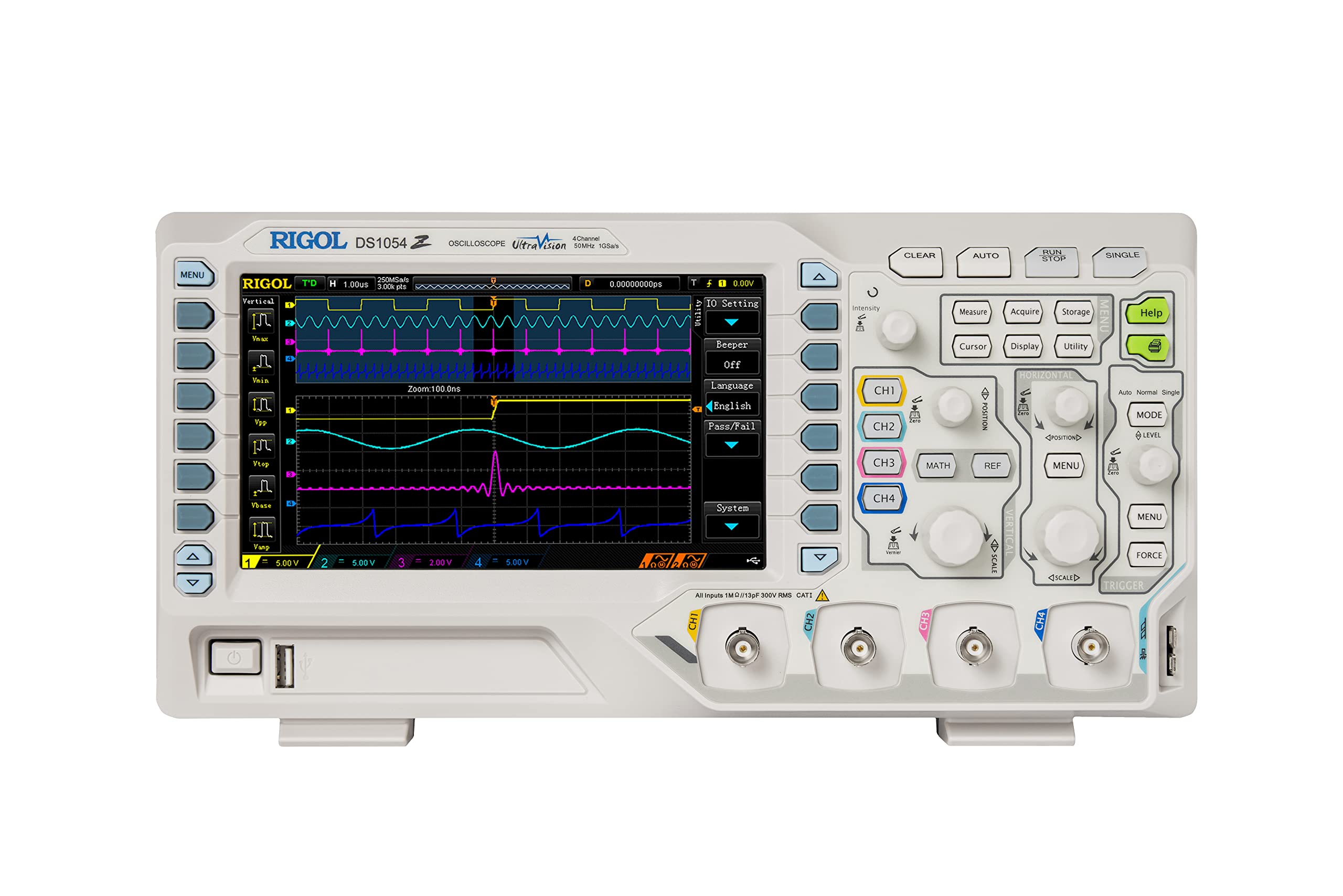

Rigol Digital Oscilloscope DS1054Z 50 MHz 4-Ch 1 GSa/s 24 Mpts 30,000 wfms/s UltraVision 7" 800x480 Intensity Display, 60,000-Frame Record/Playback, Serial Decode UART I2C SPI for Debug & Education

Brand: Rigol

Features:

• 【Core Specs】50 MHz digital oscilloscope with 4 analog channels, up to 1 GSa/s (single-channel) sample rate and standard memory depth up to 24 Mpts (12 Mpts dual-channel, 6 Mpts 3/4-ch) for long captures.
• 【UltraVision Capture】Up to 30,000 wfms/s capture rate and intensity graded display help reveal intermittent events; waveform recording/playback up to 60,000 frames supports fast review of trigger-related anomalies.
• 【Trigger & Decode Tools】Rich trigger set plus serial bus trigger/decoding for RS232/UART, I2C and SPI; FFT and filters support basic frequency-domain checks during troubleshooting.

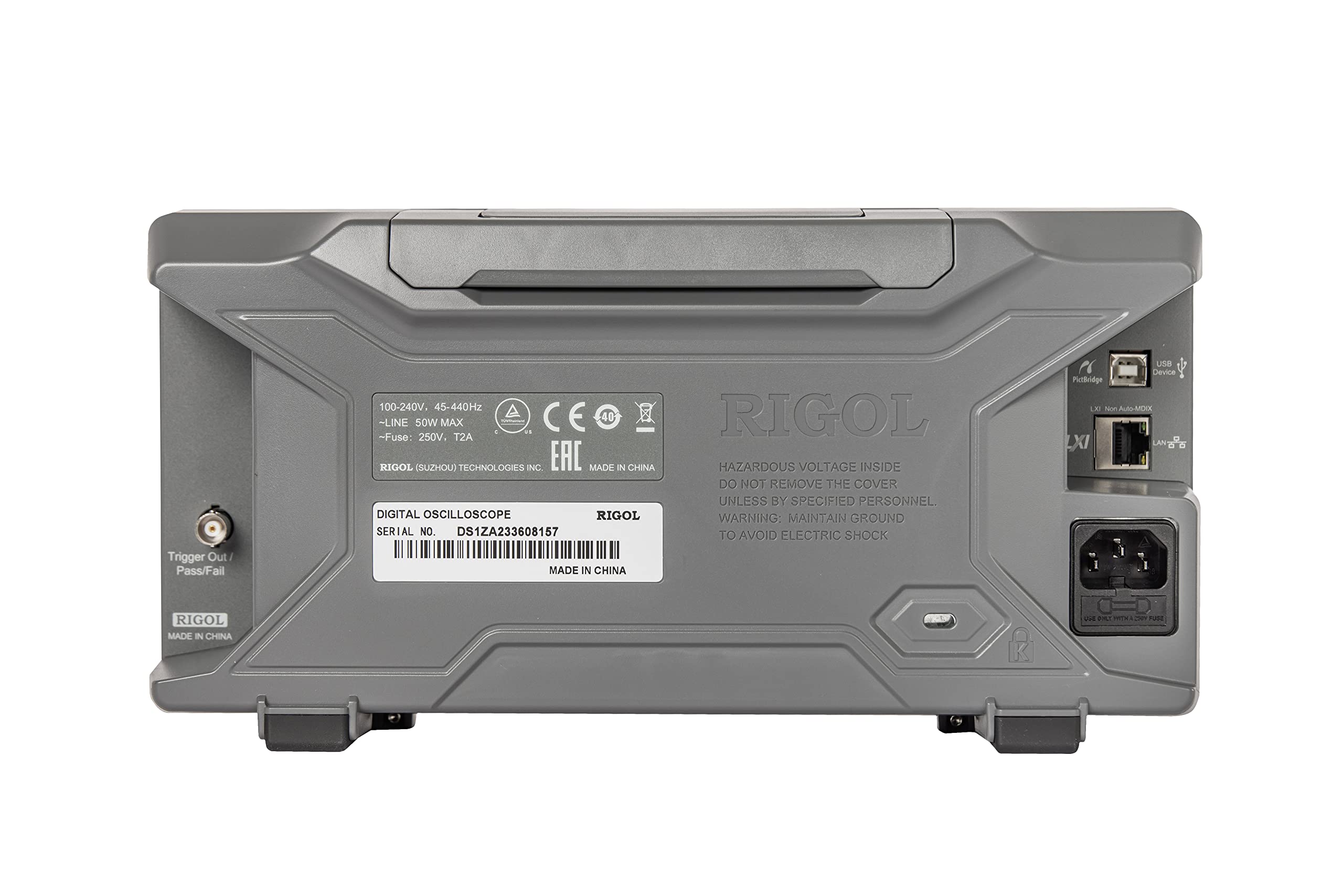

• 【Connectivity & Remote】Standard interfaces include USB Host, USB Device, LAN (LXI) and AUX output (TrigOut/PassFail) for bench integration and documentation workflows.
• 【Applications】Digital oscilloscope for electronics debugging, teaching labs, and power/embedded bring-up where deep memory and capture rate help keep both global timing context and waveform detail.

EAN: 0190073585655

Package Dimensions: 17.0 x 10.5 x 10.0 inches

Part Number: DS1054Z

model number: DS1054Z
