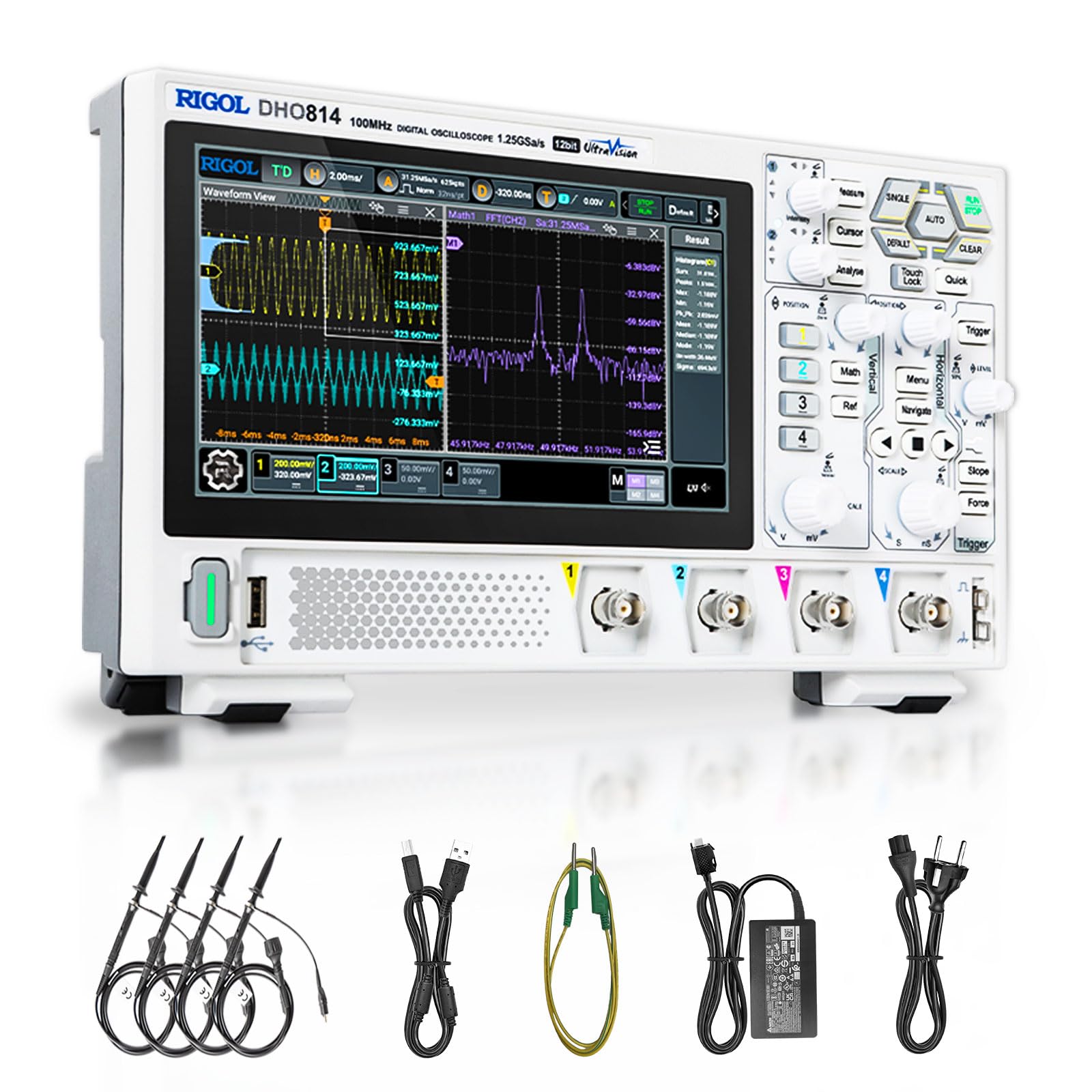

RIGOL Digital Oscilloscope DHO814 100 MHz 4-Ch 1.25 GSa/s 12-bit 25 Mpts UltraAcquire 1,000,000 wfms/s 7" Touch LAN/USB/HDMI Web Control SCPI for Power Ripple MCU Bus Debug

Brand: Rigol

Features:

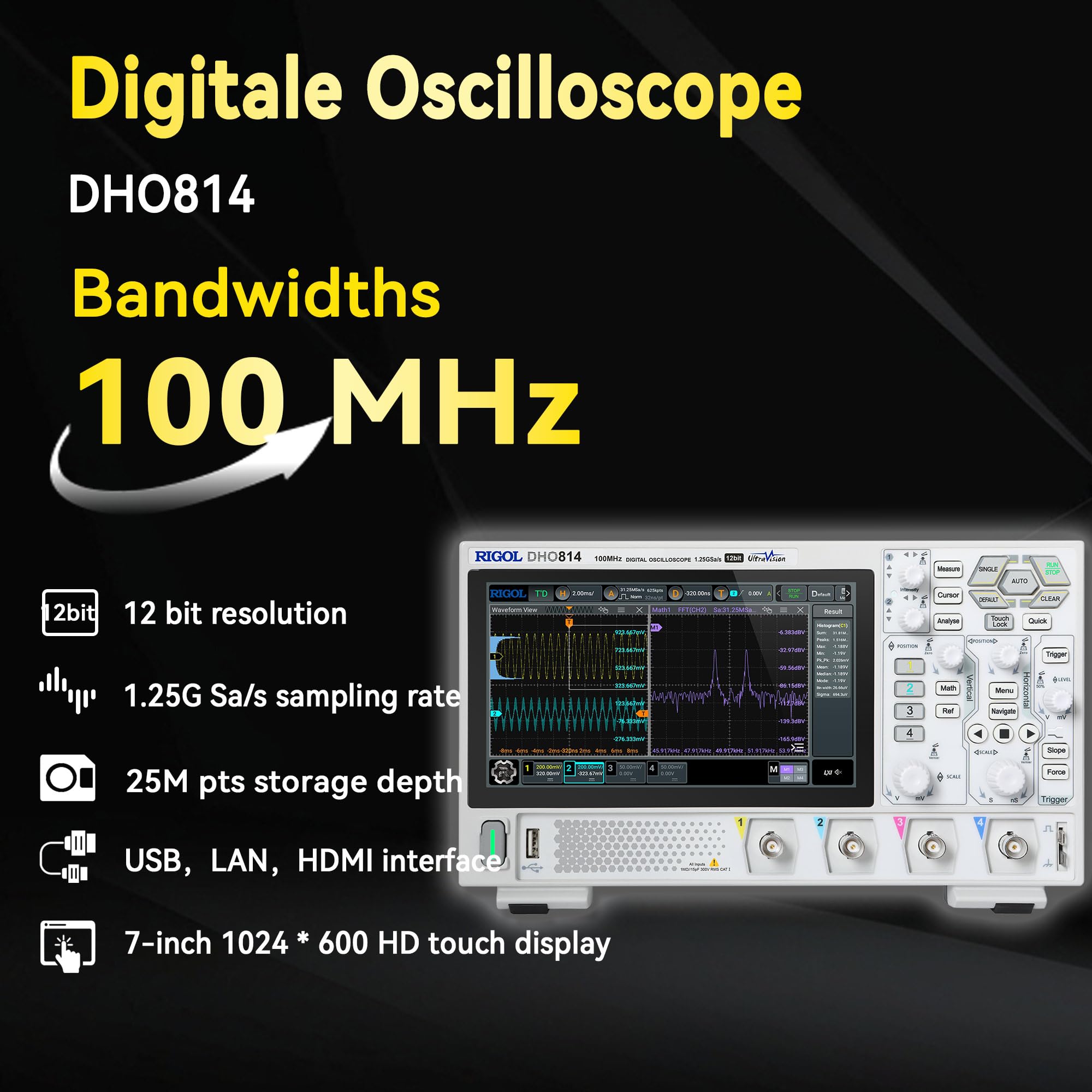

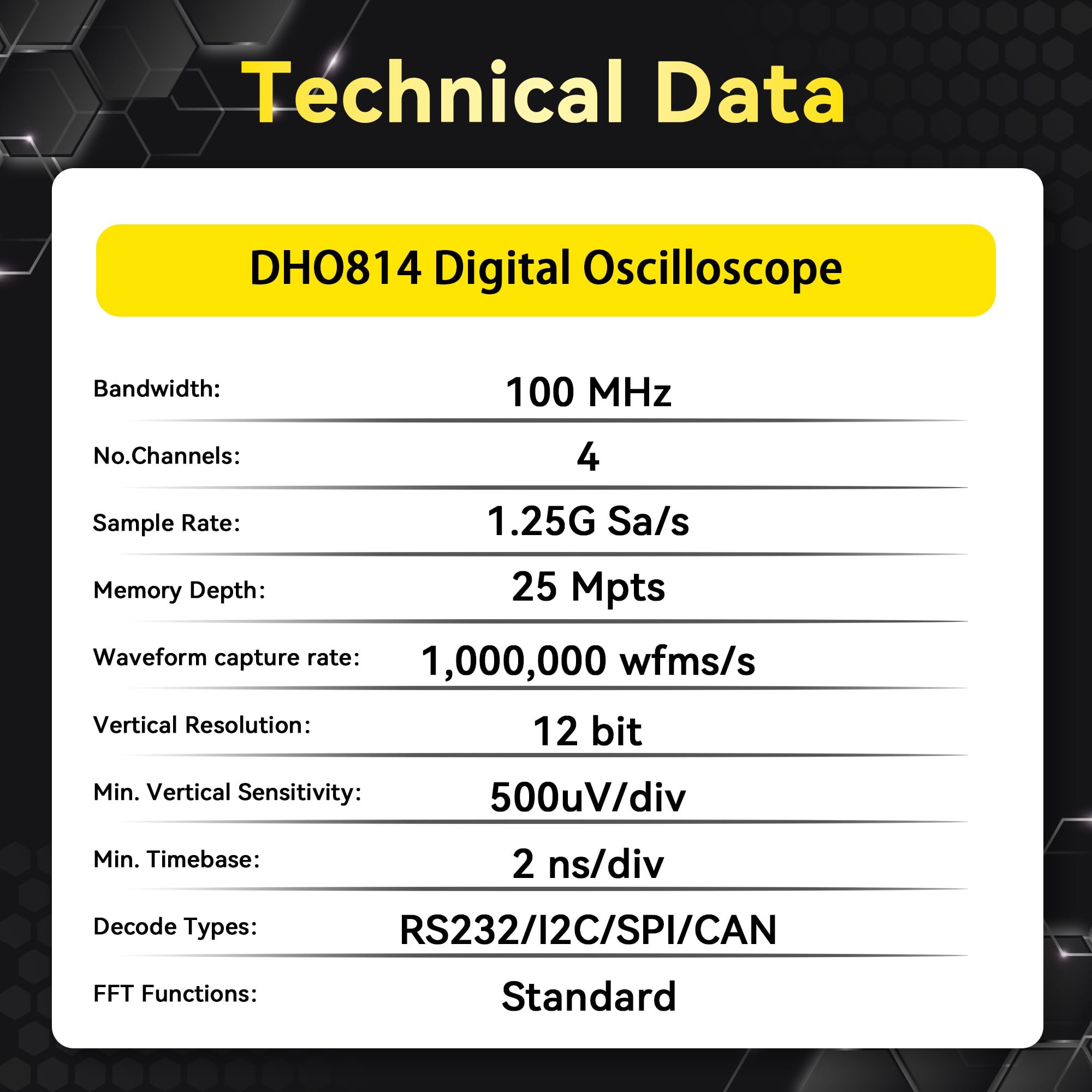

• 【Key Specs】Digital oscilloscope with 100 MHz bandwidth, 4 analog channels, 1.25 GSa/s sampling, 12-bit vertical resolution and up to 25 Mpts memory depth for long records and clearer small-signal detail.
• 【UltraAcquire & Search】UltraAcquire Mode up to 1,000,000 wfms/s with 256-level intensity grading; waveform search and navigation help locate intermittent glitches faster and review results via event/time/frame navigation.
• 【Trigger Decode Analysis】Peak detect captures glitches down to 1.6 ns; 41 auto measurements and math including FFT up to 1 Mpts plus filters. Standard serial trigger/decode supports CAN, RS232/UART, I2C, SPI and 4-bit parallel decode using analog channels.
• 【Remote Control & SCPI】LAN supports LXI‑C and browser Web Control; standard SCPI commands support automation. USB Host/Device and HDMI simplify saving waveforms/screenshots and presenting on external displays.

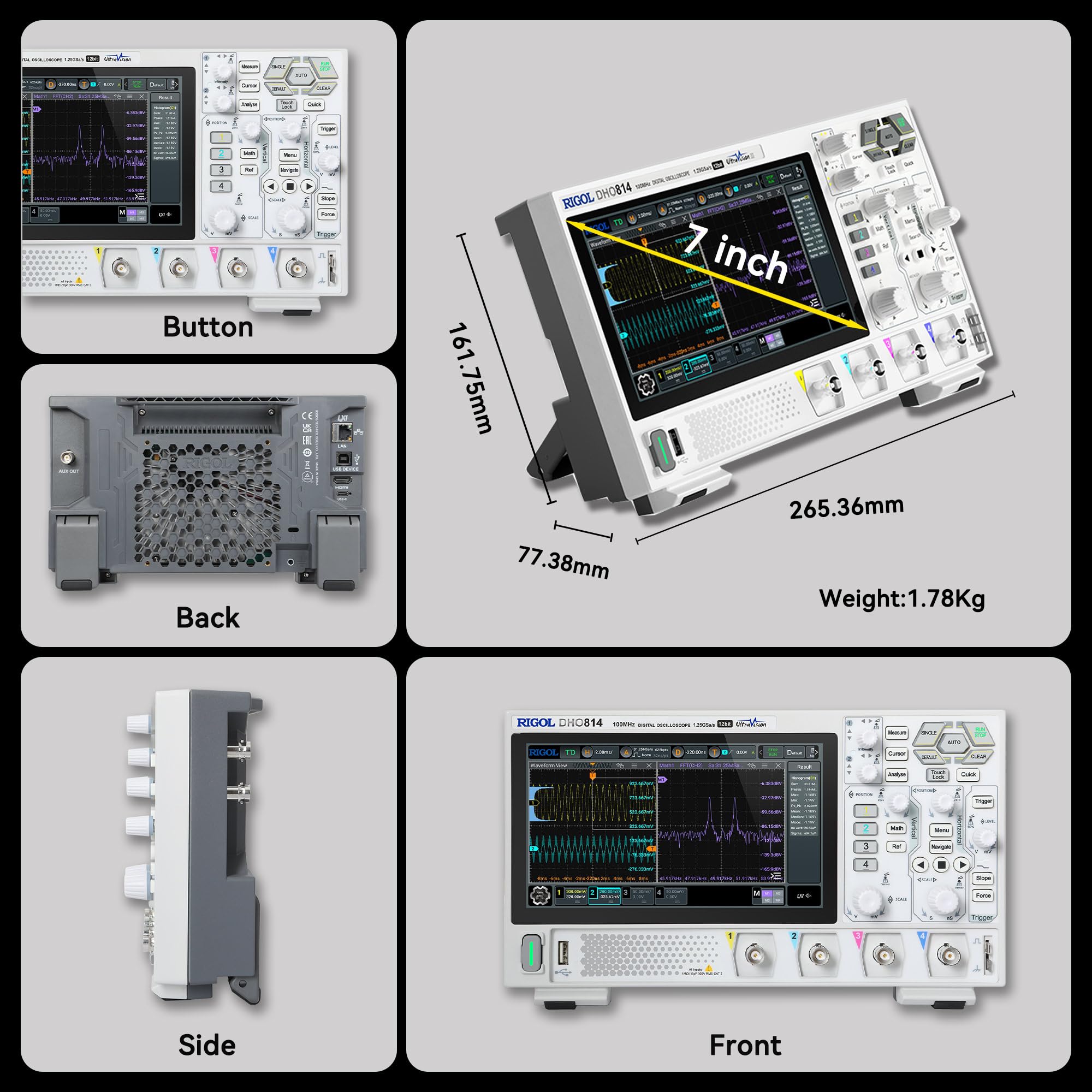

• 【Applications】Digital oscilloscope for SMPS ripple/noise, multi-rail timing correlation, embedded bring-up and protocol troubleshooting; 7" 1024×600 touch display and Flex Knob improve daily bench workflow.

EAN: 6973332407554

Package Dimensions: 13.5 x 9.9 x 6.0 inches

Part Number: DHO800

model number: DHO814
